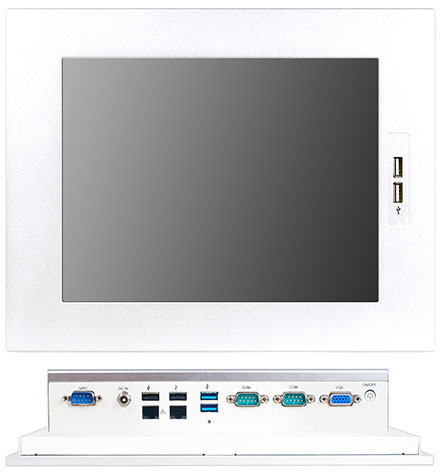

Jetway HPC104GR-HD1900B Panel-PC (10.4" 800x600 5W Touchscreen, Intel Celeron J1900, 4GB RAM) [IP65/NEMA4 Front]

Jetway HPC104GR-HD1900B Panel-PC (10.4" 800x600 5W Touchscreen, Intel Celeron J1900, 4GB RAM) [IP65/NEMA4 Front]

  • 10.4” 400 nits high brightness TFT LCD with LED backlight
  • 5 Wire Resistive Touch/Anti-Reflection Protection Glass
  • Streamlined enclosure for highly efficient heat dissipation Enclosed in robust aluminum casing
  • Strong solid aluminum frame design and Fanless cooling system
  • Support Open frameless design
  • Design for easy Wall mount, Panel Mount, VESA Mount installation
  • A true Flat, easy-to-clean front surface with edge-to-edge design
  • Lockable USB device bracket supported
  • IO Ports designed for easy connection
  • 9-28V DC-input Support, with EOS, OVP design
[more]

Share

849.00 EUR
incl. 19% VAT, plus shipping
Available in 3 weeks
Add to cart

SSD (2.5"):

  • 10.4” 400 nits high brightness TFT LCD with LED backlight
  • 5 Wire Resistive Touch/Anti-Reflection Protection Glass
  • Streamlined enclosure for highly efficient heat dissipation Enclosed in robust aluminum casing
  • Strong solid aluminum frame design and Fanless cooling system
  • Support Open frameless design
  • Design for easy Wall mount, Panel Mount, VESA Mount installation
  • A true Flat, easy-to-clean front surface with edge-to-edge design
  • Lockable USB device bracket supported
  • IO Ports designed for easy connection
  • 9-28V DC-input Support, with EOS, OVP design
Jetway HPC104GR-HD1900B heavy-duty Fanless Panel PC offers complete robust solution for harsh industrial environments, such as cloud computing, IoT solution, transportation, heavy-vehicles, intelligent building, oil pipe monitoring systems, environmental monitoring, steel refineries, machine control and factory automation.

Jetway HPC104GR-HD1900B heavy-duty Fanless Panel PC is designed with 5-wires resistive touch screen for 4:3 size panel. High brightness TFT LCD panel with LED backlight are equipped with all models. Cable-free design is easy for the HDD and memory installation. Streamlined enclosure with strong solid aluminum frame design, it provides good heat dissipation and achieve fanless cooling system.

Jetway HPC104GR-HD1900B heavy-duty Panel PC is also designed for open frame application. Heavy-duty Panel PC is designed mounting clips for easy Wall mount, Panel Mount, VESA Mount installation.

It is a true flat flat with easy clean design, front bezel meets IP65-rated & NEMA 4 protection. Welcome to use Jetway heavy-duty Panel PC.

 Display
Front Bezel – NEMA 4 rugged protection, metal front bezel
Display Type – 10.4″ With LED Backlight
Brightness (cd/m²) – 400 nits
Display Color – 262K
Resolution – 800 x 600 @ 60Hz
Viewing Angle (H/V) – 130°/140°
Aspect Ratio – 4:3
Contrast Ratio – 400:1
Response Time – 25 ms
 Touch Screen
Type – 5 wires analog resistive type
Active Range – 211.58 x 158.75mm ±0.2mm
Operating Force – ≦ 80g
Transparency – 80 ±3%
Surface Hardness – ≧3H (ASTM D3363, pressure 750g/45°)
Knock test – 10,000,000 times keystrokes/span>
 CASE
Panel Material – Aluminum
Case Material – Iron
Color – Silver + white
Coating Requirement – Spray Paint
 Main System
CPU – Intel® Bay Trail-D J1900 2.0GHz/QC
RAM – 4G 1333MHz DDR3L SAMSUNG DRAM
BIOS – 64MB SPI Flash ROM
Storage – 1* 2.5” SATA bay
– 1* M.2 connector (2242/2260/2280)
Watchdog Timer – 256 levels, 0~255 sec.
OS Support – Windows 7 / 8.1 / 10 / Linux (Option)
 I/O Connector
I/O Ports and Switches – 2* USB3.0
– 2* USB2.0
– 2* USB2.0 (Front)
– 2* RS232/422/485
– 1* CRT
– 1* 8bit GPIO
– 2* LAN (Intel® I211AT Gigabit LAN)
– 1* Locking Jack 9~28V DC input
– 1* Power button
 Expansion Interface
Expansion – 1 * PCI-E mini card for WIFI or 3G/4G
– 1 * SIM card holder for 3G/4G
 Power
Power Input – Supports 9-28V DC Power in with over current protection fuse
– Provides 100~240V AC-DC 12V, 60W power adapter
Power Consumption – 25W
 Dimension
Case Dimensions – 290.0*226.0*63.0mm
 Certifications
Certifications – CE, FCC
 Environment
Temperature – Operating Temperature: -10 ~ 60° C (with W.T. DRAM/HDD in airflow condition)
– Operating Temperature: -10 ~ 60° C(with W.T. DRAM/HDD)
– Storage Temperature: -20 ~ 85° C
Shock – Operating: 15G，11ms duration
Vibration – Operating: 5~500Hz/1 Grms
 Warranty
Warranty – 2 Years Limited Warranty(Panel and Touch is only Warranty 1 Year)
