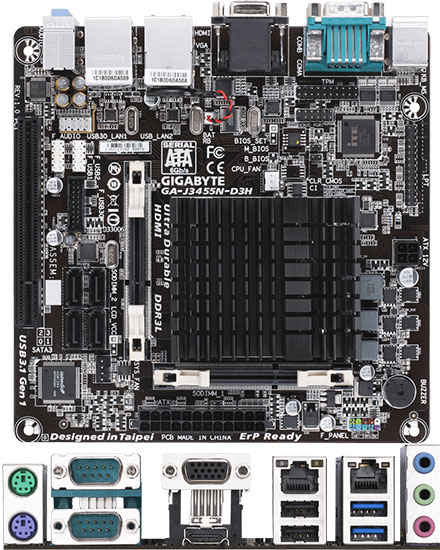

Gigabyte GA-J3455N-D3H (Intel Celeron J3455 Apollo Lake 4x2.3Ghz, 4x SATA, 2x LAN)

PRODUCT IS CURRENTLY NOT AVAILABLE !

Built-in Intel^® Celeron™ J3455 (up to 2.3 GHz) quad-core processor
GIGABYTE Ultra Durable™ Technology
Dual channel DDR3L SO-DIMM slot support
All Solid Capacitors with Humidity Protection New Glass Fabric PCB design
Dual GbE LAN with high ESD Protection
Extra two SATA 6Gb/s interfaces for more system storage connectivity
High Quality Audio Capacitors
PCI interface for wide-range expansion card selections

CPU	Intel Celeron J3455 4x2.3Ghz
Graphics	Intel GMA
Formfactor	ITX (17x17cm)
RAM	2x DDR-IIIL
Audio	Realtek ALC887 7.1
Base	Intel ITX

USB	6x USB 2.0, 4x USB3.1
Firewire	--
IDE/SATA	4x SATA 6Gb/s
LAN	2x 10/100/1000
Parallel	1x
Serial	2x

yes	TV-Out
yes	PCI
no	Mini-PCI
no	IDE
no	DVI
yes	800x480 Resolution

yes	Passive-Cooling
no	PCI-Express
no	PCMCIA
yes	SATA
no	CPU changeable
no	Compact Flash

RAM :

CPU	Built in with an Intel^® Quad-Core Celeron^® J3455 SoC (2.3 GHz) * Do not disassemble the onboard SoC and the heatsinks by yourself to avoid damage to these components. 2 MB Cache
Memory	2 x DDR3L SO-DIMM sockets supporting up to 16 GB of system memory Dual channel memory architecture Support for DDR3L 1866/1600/1333 MHz memory modules Support for non-ECC memory modules (Please refer "Memory Support List" for more information.)
Onboard Graphics	Integrated in the SoC: 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz 1 x HDMI port, supporting a maximum resolution of 3840x2160@30 Hz
Audio	Realtek^® ALC887 codec High Definition Audio 2/4/5.1/7.1-channel * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
LAN	2 x Realtek^® GbE LAN chips (10/100/1000 Mbit)
Expansion Slots	1 x PCI slot
Storage Interface	Integrated in the SoC: 2 x SATA 6Gb/s connectors (SATA3 0, SATA3 1) ASMedia^® ASM1061 chip: 2 x SATA 6Gb/s connectors (SATA3 2, SATA3 3)
USB	Integrated in the SoC: 4 x USB 3.1 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) SOC + GENESYS LOGIC USB 2.0 Hub: 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
Internal I/O Connectors	1 x 24-pin ATX main power connector 1 x 4-pin ATX 12V power connector 4 x SATA 6Gb/s connectors 1 x CPU fan header 1 x system fan header 1 x front panel header 1 x front panel audio header 1 x USB 3.1 Gen 1 header 2 x USB 2.0/1.1 headers 1 x parallel port header 1 x Clear CMOS jumper 1 x chassis intrusion header 1 x TPM header
Back Panel Connectors	1 x PS/2 keyboard port 1 x PS/2 mouse port 2 x serial ports 1 x D-Sub port 1 x HDMI port 2 x USB 3.1 Gen 1 ports 2 x USB 2.0/1.1 ports 2 x RJ-45 ports 3 x audio jacks (Line In, Line Out, Mic In)
I/O Controller	iTE^® I/O Controller Chip
H/W Monitoring	Voltage detection Temperature detection Fan speed detection Fan speed control * Whether the fan speed control function is supported will depend on the cooler you install.
BIOS	1 x 64 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features	Support for Xpress Install Support for @BIOS Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
Bundle Software	Norton^® Internet Security (OEM version)
Operating System	Support for Windows 10 64-bit
Form Factor	Mini-ITX Form Factor; 17.0cm x 17.0cm
Remark	Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP SP1/SP2. If drivers are available from the vendors, we will update them on the GIGABYTE website.

Data sheet	Download (PDF)
Data sheet	Print view
