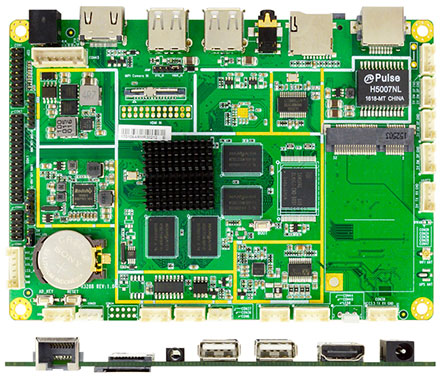

Jetway JARMR3288W (ARM Cortex A17, Android 5.1 / Linux Debian 9)

Jetway JARMR3288W (ARM Cortex A17, Android 5.1 / Linux Debian 9)

  • Rockchip® ARM Cortex A17 RK3288W Quad‐core 1.8GHz
  • DRAM : 2GB DDR3L 1333MHz on-board (Max. 4GB)
  • Flash ROM : 8GB (Max. 64GB)
  • 1 * RJ45, 5 * USB2.0, 1* OTG (Option USB2.0), 4 * COM,1 * GPIO, 1 * MIPI CSI, 1 * Micro SD Card socket, 1 * SIM Card holder
  • 1 * HDMI (1920 x 1080@60Hz)
  • 1 * 24 bits Dual CH LVDS (1920 x 1200@60Hz)
  • 1 * eDP (2560 x 1200@60Hz)
  • 1 * MIPI DSI (1920*1080@60Hz, JARMR3288WM-2N only)
  • Support Android 5.1, Linux Debian 9.0
  • 3.5” Form Factor (148mm * 102mm)


Share

179.00 EUR
incl. 19% VAT, plus shipping
Available in 3 weeks
Add to cart
  • Specifications
  • Data sheets and downloads
  • Customer ratings
 Model 　JARMR3288W Series 　JARMR3288WM Series
Model – JARMR3288W-2N – JARMR3288WM-2N
Part Number – JARMR3288W-2N – JARMR3288WM-2N
 Form Factor
Dimensions – 3.5″ SBC (148 * 102mm, 5.83″ * 4.01″)
 Processor System
Processor/CPU – Rockchip® ARM Cortex A17 RK3288W Quad-core 1.8GHz SoC Processor
GPU – Mali-T764 GPU, support AFBC
 Memory
DRAM – 2GB DDR3L 1333MHz on-board (Max. 4GB)
Flash ROM – 8GB (Max. 64GB)
 Ethernet
Ethernet – 1 * Realtek RTL8211E-VB /10/100/1000Mbps
Wifi – RTL8723BS chip_802.11 b/g/n, 2.4G & BT 4.0
3G / 4G / LTE – SIM Card holder
 Graphics
HDMI – 1 * HDMI (1920 x 1080@60Hz)
LVDS – 1 * 24 bits Dual CH LVDS (1920 x 1200@60Hz)
eDP – 1 * eDP (2560 x 1600@60Hz)
MIPI – N/A – 1 * MIPI (1920 x 1080@60fps)
Multi Display – Dual display
 Expansion Slot
Mini PCIe – 1 (USB interface)
Micro SD Socket – 1 (Micro SD Socket, Max 64G)
SIM Card Holder – 1
 Special Features
IR Support – N/A
OS Support – Android 5.1, Linux Debian 9.0
Watchdog Timer – 0~255 Sec./Min. programmable
Application – IOT & Equipment : Smart Meters, Residential Access Control, Agricultural Automation Equipment, Lottery machine, vending machine, coffee machine…etc.
 I/O Port
External I/O – 1* HDMI
– 1* RJ45
– 1* Audio
– 2* USB2.0 (USB2 Support OTG)
– 1* DC-in 		– 1* HDMI
– 1* RJ45
– 1* Audio
– 2* USB2.0 (USB2 Support OTG)
– 1* DC-in
Internal I/O – 1* eDP
– 1* LVDS
– 1* MIPI CSI (For camera)
– 4* USB2.0
– 4* COM (3* RS232 + 1* UART (for Debug))
– 1* GPIO 		– 1* eDP
– 1* LVDS
– 1* MIPI DSI
– 1* MIPI CSI (For camera)
– 4* USB2.0
– 4* COM (2* RS485 + 1* RS232 + 1* UART (for Debug))
– 1* GPIO
 Power Requirements
Input PWR 12V DC-in Power
– AT : Directly PWR on as Power input ready
– ATX : Press Button to PWR on after Power input ready
 Certifications
Certifications – RoHS, CE, FCC, CE-LVD
 Environment
Temperature – Operating: -10°C ~ 60°C with 0.7 m/s air flow
– Storage: -20°C ~ 70°C
 Warranty
Warranty – 1 Year Limited Warranty
Life Cycle – Till 2023 Q1
