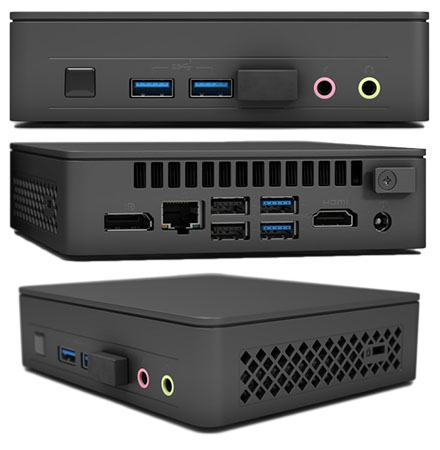

Intel NUC11ATKC2 (Intel Celeron N4505 up to 2x 2,90GHz, 1x HDMI, 1x dP, 6x USB, 1x M.2)

PRODUCT IS CURRENTLY NOT AVAILABLE !

Intel NUC11ATKC2 (Intel Celeron N4505 up to 2x 2,90GHz, 1x HDMI, 1x dP, 6x USB, 1x <b>M.2</b>)

2x 2,0GHz, up to 2,90GHz Turbo !
System on Chip (SoC) !
BNUC11ATKC2000 !

CPU: Intel Celeron N4505, 2C/2T, 2.00-2.90GHz, 4MB+1MB Cache, 10W TDP, Codename "Jasper Lake" (Tremont, 10nm+)
RAM: 2x DDR4 SO-DIMM, dual PC4-23466S/DDR4-2933, max. 32GB (UDIMM)
Memory: 1x M.2/M-Key (PCIe 3.0 x4/SATA, 2280/2242)
Graphics: Intel UHD Graphics (iGPU), 16EU/128SP, 0.45-0.75GHz, Codename "Jasper Lake" (Gen11)
Connectors: 1x HDMI 2.0b, 1x DisplayPort 1.4, 2x USB-A 3.1, 2x USB-A 3.0, 2x USB-A 2.0, 1x Gb LAN (Realtek RTL8111H-CG), 1x DC-In, 2x Klinke, Frontpanel-Heade
Extension: 1x M.2/E-Key (Intel CNVi, 2230, used for WiFi+BT-Modul)
Wireless: Wi-Fi 5 (WLAN 802.11a/ [more]

RAM :

SSD (M.2 NVME):

Build/Install:

CPU: Intel Celeron N4505, 2C/2T, 2.00-2.90GHz, 4MB+1MB Cache, 10W TDP, Codename "Jasper Lake" (Tremont, 10nm+)
RAM: 2x DDR4 SO-DIMM, dual PC4-23466S/DDR4-2933, max. 32GB (UDIMM)
Memory: 1x M.2/M-Key (PCIe 3.0 x4/SATA, 2280/2242)
Graphics: Intel UHD Graphics (iGPU), 16EU/128SP, 0.45-0.75GHz, Codename "Jasper Lake" (Gen11)
Connectors: 1x HDMI 2.0b, 1x DisplayPort 1.4, 2x USB-A 3.1, 2x USB-A 3.0, 2x USB-A 2.0, 1x Gb LAN (Realtek RTL8111H-CG), 1x DC-In, 2x Klinke, Frontpanel-Heade
Extension: 1x M.2/E-Key (Intel CNVi, 2230, used for WiFi+BT-Modul)
Wireless: Wi-Fi 5 (WLAN 802.11a/b/g/n/ac, 2x2, Intel AC9462), Bluetooth 5.1
Power Supply: external, 1x DC-In (65W/19V)
VESA-Mount: 75x75/100x100 (inkluded)
Dimennsions (BxHxT): 125x36x115 mm, 0,5 l
Specials: Security Lock (Kensington), 2x Display Support

Data sheet	Download (PDF)
Data sheet	Print view
