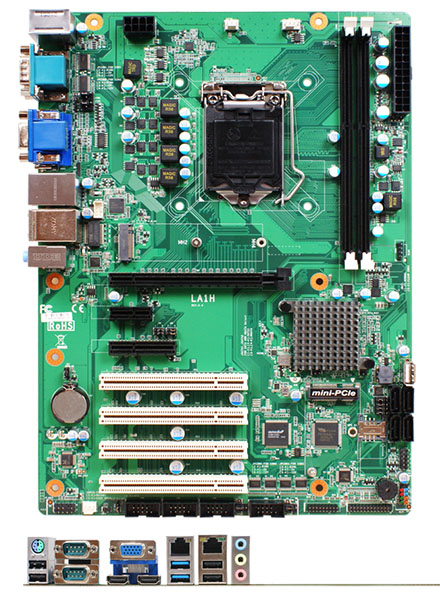

Jetway JLA1H-00 (LGA1150 Lynx Point H81, 2x LAN, 2x COM)

Jetway JLA1H-00 (LGA1150 Lynx Point H81, 2x LAN, 2x COM)
  • LGA1150 !
  • 6x COM !
  • 2x LAN !
  • Micro ATX Format !

  • Intel® LGA1150 Socket support 4th Gen. Core Processor (Max. 90W)
  • Intel® Lynx Point H81 Chip
  • 2* DDR3/DDR3L 1600/1333MHz up to 16GB
  • Realtek HD Audio
  • 1* Intel®i217LM GbE, 1* Intel® i211AT GbE
  • 4* SATA, 1* M.2 (M key), 1* PCIe x16, 1* PCIex4, 1*PCIe x1, 4* PCI
  • 1* VGA, 2* HDMI
  • 2* RS232/422/485 (COM1/2), 4* RS232, 2* USB3.0, 7* USB2.0
  • ATX Power Input
  • ATX Form Factor (305 *220 mm)


Share

279.00 EUR
incl. 19% VAT, plus shipping
Available in 3 weeks
Add to cart

SSD (M.2 NVME):
Model – JLA1H-00
– JLA1H-0A (Without Audio function)
Form Factor – ATX (305 * 220mm)
Processor System – Intel® LGA1150 Socket supports 4th Gen. Core Processor (Max. 90W)
– Intel® H81 Express chipset
– AMI 32Mb Flash ROM BIOS
Expansion Slot – 1* M.2 (M-key, 2242/2280, SATA Interface, CO-lay SATA4)
– 1* Mini PCIe, full size (USB2.0 interface)
– 4* SATA4 (Co-lay M.2)
– 1* PCIe x16 + 1* PCIe x4 slot or 1* PCe x6 + 2* PCIe x1 slot
– 4* PCI slots
Memory – 2* LONG DIMM DDR3/DDR3L 1600/1333MHz DRAM up to 16GB
Graphics – Intel® HD Graphics, shared memory
– 1* VGA (Max Resolution: 1920×1200@60Hz)
– 2* HDMI 1.4 (Max Resolution: 2560×1600@60Hz)
– Support Dual Displays
Ethernet – 1* Intel i217LM GbE
– 1* Intel i211AT GbE
Audio – HD audio: Realtek codec (JLA1H-00)
SATA – 2* SATAIII (6.0Gb/s)
– 2* SATAII (3.6Gb/s)
Rear I/O – 1* VGA
– 2* HDMI
– 2* RJ45
– 2* USB3.0
– 4* USB2.0
– Line-in, Line-out, MIC
– 2* RS232/422/485 (support 5/12V TTL)
– 1* PS/2
Internal I/O – 2* USB 2.0
– 1* USB2.0 (Erect)
– 4* RS232 (COM3/4 support 5/12V TTL)
– 1* Parallel (Co-lay GPIO)
– 1* GPIO (16 bit, Co-lay Parallel)
– 1* SIM Card slot
– 1* Chassis intrusion
– 1* Audio Header
– 1* SMBUS / I2C
– 1* AT mode
– 1* TPM2.0 (option)
Watchdog Timer – From Super I/O to drag RESETCON#
– 256 segments (10sec ~ 255min)
Power ATX PWR, AT/ATX Supported
– AT: Directly PWR on as Power input ready
– ATX: Press Button to PWR on after Power input ready
Compliance – CE, FCC, RoHS, REACH
Temperature – Operating: 0°C ~ 60°C
– Storage: -20°C ~ 70°C
– Humidity: 10% ~ 90% RH @40°C (non-condensing)
OS Support – Windows 7, 8, 10, Linux
Data sheet Download (PDF)
Data sheet Print view
Datasheet Download (PDF)
