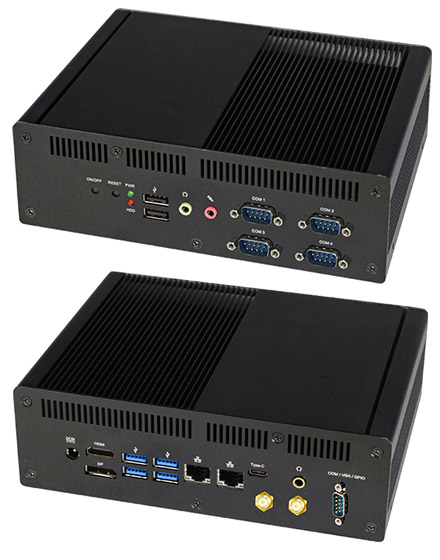

Jetway HBFDF835-1021-V (Intel Whiskey Lake-U, I5-10210U)

Jetway HBFDF835-1021-V (Intel Whiskey Lake-U, I5-10210U)
  • I5-10210U !
  • 4x COM !
  • 2x LAN !

  • Intel® Whiskey Lake-U Processor
  • 2* SO-DIMM DDR4-2400MHz up to 64GB
  • 2* USB2.0, 4* USB3.1, 1* USB Type-C, 1* HDMI, 1* DP, 2* RJ45
  • Support Max. 4K display resolution
  • Adapter DC12V/90W


Share

698.00 EUR
incl. 19% VAT, plus shipping
Available in 3-7 days
Add to cart
RAM :

SSD (M.2 NVME):

OS:

Build/Install:
  • Specifications
  • Data sheets and downloads
  • Customer ratings
  • Assembling options
Model – HBFDF835-8365-V (CPU: I5-8365UE, Default)
– HBFDF835I-8365-V (CPU: I5-8365UE, Wifi)
– HBFDF835-1021-V (CPU: I5-10210U)
– HBFDF835I-1021-V (CPU: I5-10210U, Wifi)
CPU/Chipset – Intel® Whiskey Lake-U SoC Processor (TDP 15W)
Notes : When the system runs, CPU will automatically adjust its working clock frequency according to changing workload.
BIOS – AMI Flash ROM
Memory – 2* DDR4 2400MHz SO-DIMM up to 64GB
Network – 1* Intel® i219LM GbE
– 1* Intel® i225V 2.5GbE
Graphics – Intel® HD Graphics, shared memory
– 1* DP (Max Resolution: 4096×2304@60Hz)
– 1* HDMI 1.4 (Max Resolution: 4096×2160@30Hz)
– Support Dual Displays
Storage – 1* M.2 M-key (2242/2280, PCIe x4/SATA interface) support NVMe
– 1* 2.5” SATAIII Device (support 2.5” HDD with a height ≤ 10mm)
Expansion – 1* M.2 E-key (2230) support CNVi for WiFi expansion
Rear Panel I/O – 4 * USB 3.1 (Gen.2)
– 1 * USB 3.1 (Gen.2) Type C (USB data transfer only)
– 1 * HDMI 1.4 (Max. resolution:4096 x 2160@30Hz)
– 1 * DP (Max. resolution:4096 x 2304@60Hz)
– 2 * RJ45
– 1 * Line-out
– 1 * COM
– 1 * DC-in jack
Front Panel I/O – 1 * Power button
– 1 * Reset button
– 1 * Power LED
– 1 * HDD LED
– 2 * USB 2.0
– 1 * Line-out
– 1 * MIC
– 4 * COM
Internal Connector – Onboard TPM2.0
Power Source – MB: DC-in 9~24V
– Adapter: AC_90~240V / DC12V / 90W
Compliance – CE, FCC, LVD Ready
Dimensions – System: 193 (W) x 142.4 (D) x 62 (H) mm
– Box: 250 (W) x 118 (D) x 295 (H) mm
Temperature – Operating Temperature: -20 ~ 60° C (Under the condition of using M.2 interface SSD)
– Operating Temperature: 0 ~ 50° C (Under the condition of using 2.5” SATA HDD)
(The test environment is closed and windless)
– Storage Temperature: -40 ~ 85° C
– Humidity: 10% ~ 95% RH @40°C (non-condensing)
OS Support – Windows 10, Windows 11, Linux
